Learn how to update your Di2 component firmware

Update Di2 Firmware

Do you know how to update Di2 firmware? Have you ever updated your bike’s firmware or software before? In this post I’ll explain how you can check for firmware updates and install them.

Requirements

Before you get all excited, make sure you are actually able to update the firmware yourself. The items you need are:

  • Windows computer / laptop
  • PC interface device. Either the charger(SM-BCR2) or the more expensive SM-PCE1 / SM-PCE02

If your bike is equipped with a recent Information Display or Junction A that lets you plug in the SM-BCR2 charger then this is by far the easiest way.

Older bikes can only be updated using the SM-PCE1 / SM-PCE02 devices, which are expensive. If you cannot connect your bike to a windows computer then I recommend you have a bike shop do your updates for you.

And yeah, Windows. Unfortunately the Shimano E-Tube Project software is not available for OS X or Linux. The alternative would be Wireless updates, but you can only do this with a Wireless Unit / Display installed and it tends to fail a lot. I strongly recommend you use a Windows computer.

But why update? What does it do?

Let’s talk about why you would want to update your firmware. While up-to-date drivers for your Windows PC are likely to increase performance slightly, updating your di2 firmware will not make you ride faster. Also, if things go wrong you could end up with an unresponsive bike!

So, a word of caution: if you are not sure about the process and are not having any problems with the bike, leave it the way it is – or find a local bike shop to do the updates for you when your bike is in for maintenance.

That said, there are a couple of cases when updating firmware makes perfect sense or is even required:

  • Update (older) components to enable compatibility with new components
  • Apply bug fixes or improve usability
  • Sometimes firmware will add new features – synchronized shifting for example

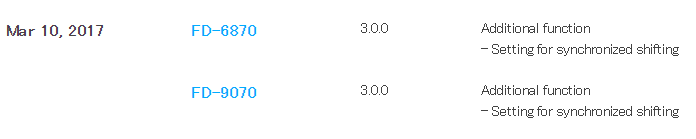

Synchronized shifting firmware update

How do you know there is an update?

There are two ways to check for updates. The easiest is to visit Shimano’s E-Tube Project website: e-tubeproject.shimano.com. You simply click ‘Firmware Update Information‘ at the top and you’ll be presented with a list of recent updates.

If you prefer to search by model number you can click the ‘Sort by Model No.‘ button and then find the model number you are interested in.

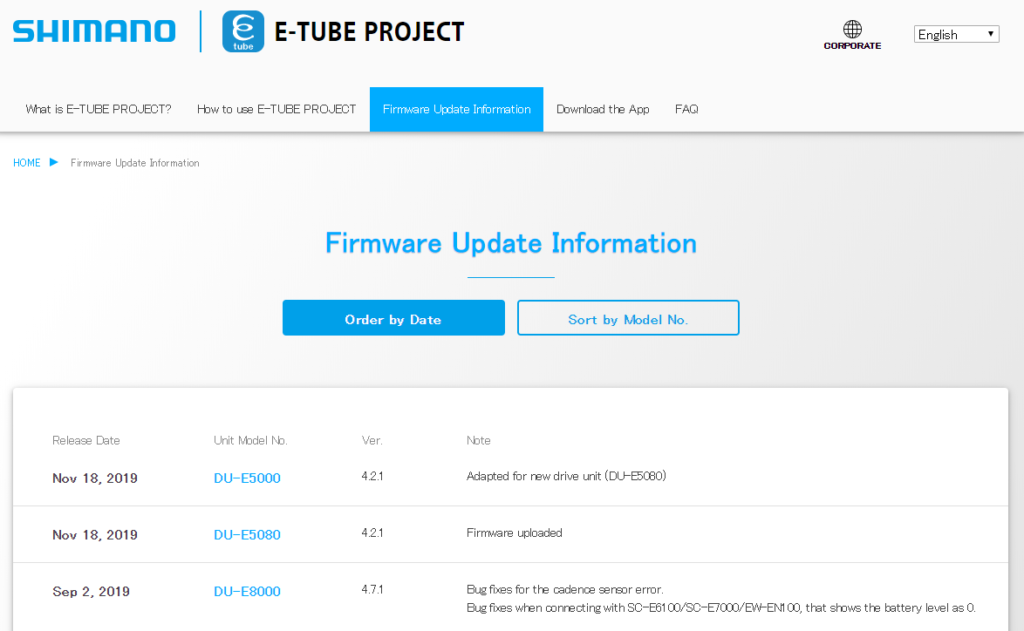

Firmware update information

Or connect the bike to a computer

The other method to check for updates is to connect your bike to a computer.

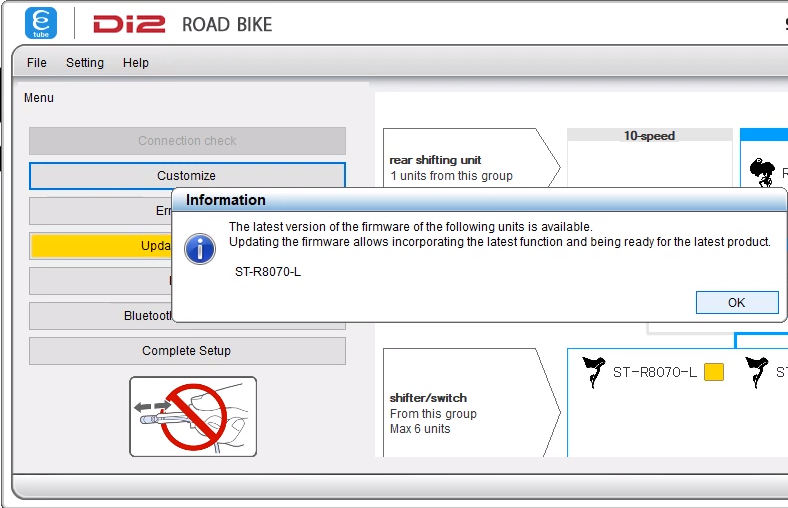

Plug in the charger, run E-Tube Project, select your bike type and click ‘Connection Check‘. After the connection check is complete the application will let you know about any components that have outdated firmware.

Update Di2 Firmware

The update process

So it’s time to run the update. You may have noticed the yellow ‘Update Firmware‘ button, begging you to click it. Before you press that button, make sure your laptop charger is plugged in so it doesn’t switch off or go into standby during the firmware update.

Also, while the update is in progress:

  • Do not unplug the USB cable, charger or electric wires
  • Make sure your bike’s battery is sufficiently charged – I’d say 50% or more
  • You cannot shut down the E-Tube Project while the firmware update is in progress

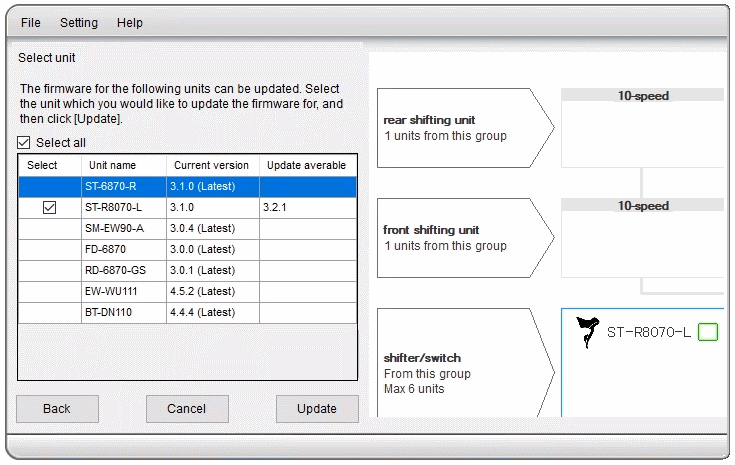

After you click the ‘Update Firmware‘ button you will be asked to select the units you want to update. On screen you’ll see each installed component and its firmware version – and the version you would be updating to.

Update Di2 firmware

Click ‘Update‘ to begin the firmware update, or ‘Cancel‘ or ‘Back‘ to abort the process. Once you click the button a new screen will appear, displaying the firmware update progress.

Note that if you press ‘Cancel‘ or ‘Back‘ the update process will stop, but only after it has completed updating the current unit.

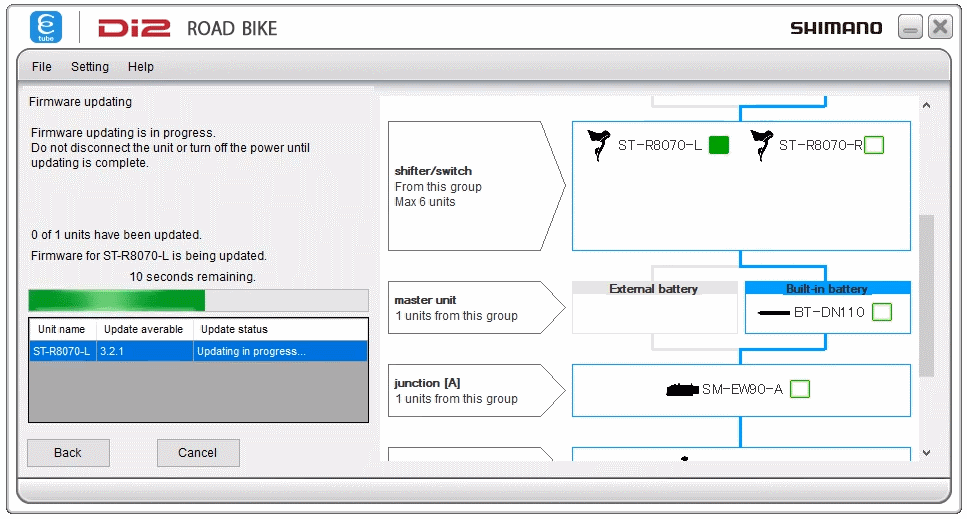

Update component firmware

When the update has completed successfully the application will show each updated component name and new firmware version. Click ‘Complete‘ and the application home screen will be shown. You can now click ‘Complete Setup‘ and close the application.

Problems..? Failed update?

While these cases are rare, firmware updates can fail. If the update process is interrupted or unsuccessful an error message will be displayed on the screen. It will also display the steps you can take to restore the affected unit.

You may need an SM-PCE1 or SM-PCE02 to restore the unit’s firmware and functionality. If this is the case I recommend you visit a friendly local bike shop and ask them to restore it for you.

If you are experiencing problems or have a feedback regarding this post, don’t hesitate to get in touch and let me know.
